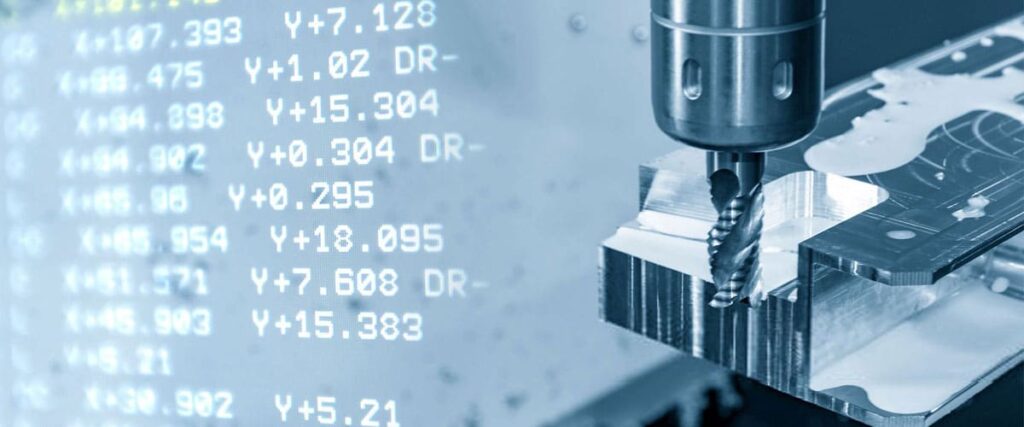

Common CNC Codes in Machining

CNC machining relies heavily on the use of programming languages, primarily G-codes and M-codes, which direct the machine’s movements and operations. These codes are the foundation of how CNC machines operate, translating complex designs into precise movements to produce the final product. Below, we will explore the Common CNC Codes in Machining.

1. G-Codes: Movement Control

G-codes, or preparatory codes, are the most frequently used CNC codes and are responsible for defining the path the machine will follow. Each G-code is designed to perform a specific function, whether it’s defining the plane of operation, setting feed rates, or making rapid movements. Here are a few critical G-codes to know:

• G00: This command initiates rapid positioning, moving the machine’s tool quickly from one point to another without cutting. It’s essential for time efficiency, as it minimizes downtime between cuts.
• G01: Used for linear interpolation, this code commands the machine to move along a straight line at a specified feed rate while performing cutting operations.
• G02/G03: These codes control circular interpolation for cutting arcs. G02 handles clockwise arcs, while G03 is for counterclockwise movements.
• G17/G18/G19: These are plane selection codes that determine which plane the machine operates on. For example, G17 sets the XY plane, G18 for ZX, and G19 for YZ.

Understanding these codes is vital for controlling the accuracy and efficiency of CNC machines, especially in precision manufacturing where even the smallest error can lead to faulty parts.

2. M-Codes: Machine Functions

M-codes, or miscellaneous codes, are responsible for controlling the non-movement aspects of the machine. While G-codes dictate how the machine moves, M-codes control various functions such as starting and stopping the spindle, coolant control, and program pauses. Key M-codes include:

• M00: This command pauses the CNC program until the operator manually restarts it. It’s typically used when an operator needs to make adjustments.
• M03: This starts the spindle in a clockwise direction, essential for most cutting operations.
• M05: Stops the spindle, signaling the end of a cutting operation.
• M08/M09: These codes control the coolant flow, with M08 turning it on and M09 turning it off. Coolant is critical in most CNC operations as it prevents overheating and improves surface finish.

M-codes help to ensure that the CNC machine operates smoothly and safely, allowing for various mechanical functions to take place during a machining operation.

3. Importance of Combining G and M Codes

Both G-codes and M-codes work in tandem to create a fully automated process. For instance, a G01 command might be used to cut a straight line, while M08 turns on the coolant to ensure the tool remains cool during cutting. Understanding how to combine these codes efficiently allows machinists to create more complex programs and optimize production processes.

Understanding CNC codes is essential for both novice and experienced machinists. G-codes control movement, M-codes manage machine functions, and other codes like T, F, and S are used to adjust parameters like tool selection, feed rate, and spindle speed. By mastering these codes, machinists can fully harness the capabilities of CNC machines, ensuring precise, efficient, and high-quality manufacturing processes.

The post Common CNC Codes in Machining appeared first on CUSTOM PARTS | RAPID PROTOTYPING | CUSTOMACHINING.

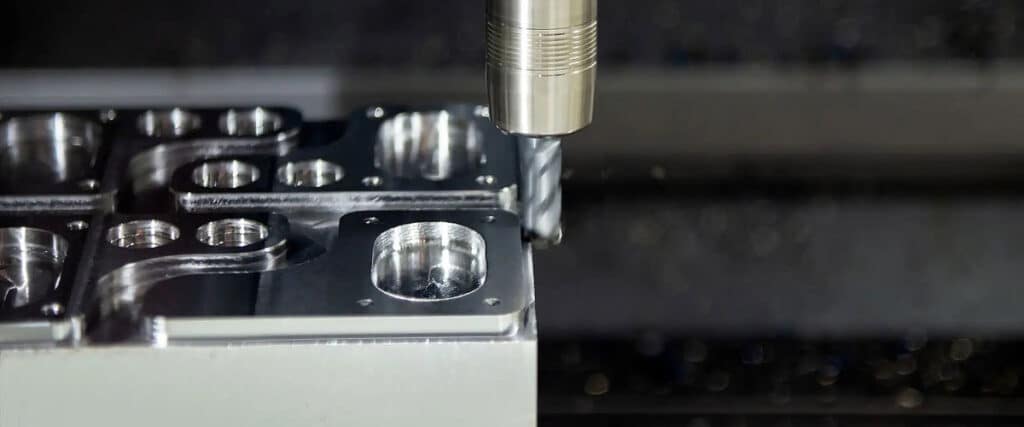

Understanding CNC Machining Tolerances

Tolerances in CNC machining are critical for ensuring that parts meet their intended specifications and function as designed. Understanding tolerances and their implications can significantly impact the quality and performance of your machined components.

What Are Tolerances?

Tolerances define the permissible limits of variation in a physical dimension. In CNC machining, they specify the allowable deviation from the nominal dimensions stated in the design. Tolerances are crucial because no manufacturing process can achieve absolute precision, and some degree of variation is inevitable.

Types of Tolerances

1. Dimensional Tolerance: Refers to the allowable variation in the size of a part feature. For example, a hole diameter specified as 10 mm with a tolerance of ±0.01 mm can be anywhere between 9.99 mm and 10.01 mm.
2. Geometric Tolerance: Concerns the shape and positional accuracy of features. This includes aspects like flatness, roundness, parallelism, and perpendicularity.
3. Surface Finish Tolerance: Indicates the allowable variation in the surface texture of a part. A smoother finish might be required for parts that interact with other components or need to meet aesthetic standards.

Factors Affecting Tolerances

1. Material: Different materials expand, contract, and behave differently under machining processes. Metals, plastics, and composites each have unique properties that influence achievable tolerances.
2. Machining Process: The type of CNC machining process (milling, turning, drilling) affects the precision of the finished part. Multi-axis machining can achieve tighter tolerances compared to simpler processes.
3. Tooling and Equipment: The quality and condition of the tools and machines used in the process play a significant role in determining tolerances. High-quality, well-maintained equipment can produce parts with tighter tolerances.
4. Operator Skill: The expertise and experience of the machine operator can influence the accuracy and consistency of machined parts.

Importance of Tolerances

1. Functionality: Tolerances ensure that parts fit together properly and function as intended. Improper tolerances can lead to parts that do not assemble correctly or fail in operation.
2. Interchangeability: Tolerances allow for parts to be interchangeable, which is crucial in mass production. This ensures that parts from different production batches fit together without the need for custom fitting.
3. Quality Control: By defining acceptable limits, tolerances help in maintaining consistent quality across all manufactured parts. This aids in meeting industry standards and customer expectations.
4. Cost Efficiency: Specifying appropriate tolerances can help balance manufacturing costs. Overly tight tolerances can increase production costs due to more stringent quality control and slower machining processes, while looser tolerances can reduce costs but may affect the functionality and quality of the final product.

In conclusion, understanding and specifying the correct tolerances in CNC machining is vital for ensuring the quality, functionality, and cost-efficiency of manufactured parts. It requires a careful balance between precision and practicality, considering the capabilities of the machining process, the properties of the materials used, and the intended application of the parts.

The post CNC Machining Tolerances appeared first on CUSTOM PARTS | RAPID PROTOTYPING | CUSTOMACHINING.

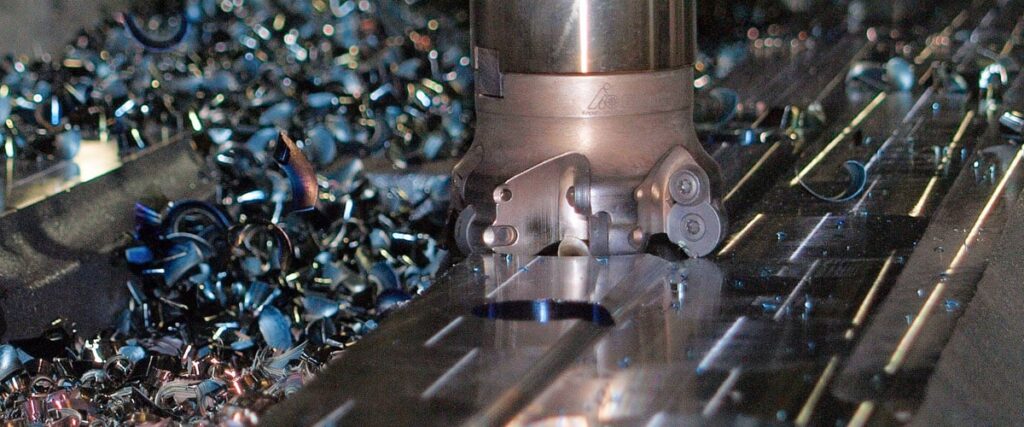

How to Choose The Right CNC Machine for Your Project

Selecting the right CNC machine for your project is a critical decision that can impact the quality, efficiency, and cost of your manufacturing process. Here are some key factors to consider when choosing a CNC machine.

1. Determine Your Project Requirements

The first step in choosing the right CNC machine is to clearly define your project requirements. Consider the materials you will be working with, the complexity of the parts, and the required tolerances. For instance, if you are machining high-precision metal parts, you might need a machine with tight tolerances and high stability. Understanding your specific needs will help narrow down your options.

2. Assess Machine Capabilities

Different CNC machines come with varying capabilities. Evaluate the machine’s axis count (e.g., 3-axis, 4-axis, 5-axis), spindle speed, feed rate, and maximum workpiece size. Machines with more axes can handle more complex geometries, while higher spindle speeds and feed rates can enhance productivity. Ensure that the machine you choose can meet the demands of your project.

3. Consider Software Compatibility

CNC machines rely on CAD/CAM software for programming. Make sure the machine you choose is compatible with the software you are using or plan to use. Compatibility issues can lead to inefficiencies and additional costs. It’s also important to consider the ease of use and learning curve of the software, as this can affect the overall productivity and quality of your machining operations.

4. Evaluate Precision and Tolerance

Precision and tolerance capabilities are crucial, especially for industries requiring high accuracy. Check the machine’s specifications for its achievable tolerances and ensure they align with your project requirements. Machines with higher precision capabilities typically come at a higher cost, but they are essential for projects demanding tight tolerances.

5. Review Machine Build Quality and Reliability

The build quality of the CNC machine affects its durability, reliability, and performance. Look for machines made from robust materials with a solid construction. Consider the reputation of the manufacturer and read reviews from other users. Reliable machines reduce downtime and maintenance costs, contributing to a more efficient production process.

6. Analyze Cost and Return on Investment

While the initial cost of a CNC machine is a significant consideration, it’s essential to analyze the total cost of ownership and the potential return on investment (ROI). Factor in maintenance costs, energy consumption, and the lifespan of the machine. A higher upfront investment in a quality machine may lead to lower operational costs and higher productivity over time.

7. Seek Expert Advice

Consulting with industry experts or suppliers can provide valuable insights into the best CNC machines for your specific needs. They can help you understand the technical specifications, compare different models, and make an informed decision.

In summary, choosing the right CNC machine involves understanding your project requirements, evaluating machine capabilities, ensuring software compatibility, assessing precision, reviewing build quality, analyzing costs, and seeking expert advice. By considering these factors, you can select a CNC machine that meets your needs and enhances your manufacturing efficiency.

The post Selecting The Right CNC Machine appeared first on CUSTOM PARTS | RAPID PROTOTYPING | CUSTOMACHINING.

Top 5 Benefits of CNC Machining for Modern Manufacturing

CNC machining has become a cornerstone of modern manufacturing due to its numerous advantages. Here are the top five benefits that make CNC machining an essential part of contemporary production processes.

1. Precision and Accuracy

CNC machines operate with remarkable precision, producing parts with tight tolerances that would be difficult to achieve with manual methods. The use of computer programming allows for exact control over machining operations, ensuring each part meets precise specifications. This level of accuracy is crucial for industries like aerospace, automotive, and medical devices, where precision is paramount.

2. Consistency and Repeatability

One of the standout benefits of CNC machining is its ability to produce identical parts consistently over large production runs. Once a design is programmed into the CNC machine, it can reproduce the same part with minimal variation. This consistency reduces errors, lowers waste, and ensures uniform quality across all produced parts, which is essential for maintaining product standards.

3. Efficiency and Speed

CNC machines are capable of operating at high speeds, significantly reducing production times compared to manual machining. Automated tool changers and multi-axis capabilities allow for complex parts to be manufactured in a single setup, further enhancing efficiency. This speed and efficiency are critical for meeting tight deadlines and increasing overall productivity.

4. Versatility and Flexibility

CNC machines can work with a wide range of materials, including metals, plastics, and composites. They are also highly adaptable, capable of performing various operations such as drilling, milling, turning, and cutting. This versatility allows manufacturers to produce a diverse array of parts and components, from simple to highly complex geometries, using a single machine.

5. Cost-Effectiveness

While the initial investment in CNC machinery can be high, the long-term cost savings are substantial. The automation of processes reduces the need for manual labor, lowers the risk of human error, and minimizes material waste. Additionally, the ability to produce parts quickly and consistently reduces overall production costs, making CNC machining a cost-effective solution for both prototyping and large-scale manufacturing.

In conclusion, CNC machining offers unparalleled benefits in terms of precision, consistency, efficiency, versatility, and cost-effectiveness. These advantages make it a vital tool in the arsenal of modern manufacturers, enabling them to produce high-quality parts and components that meet the rigorous demands of today’s industries.

The post CNC Machining Benefits appeared first on CUSTOM PARTS | RAPID PROTOTYPING | CUSTOMACHINING.

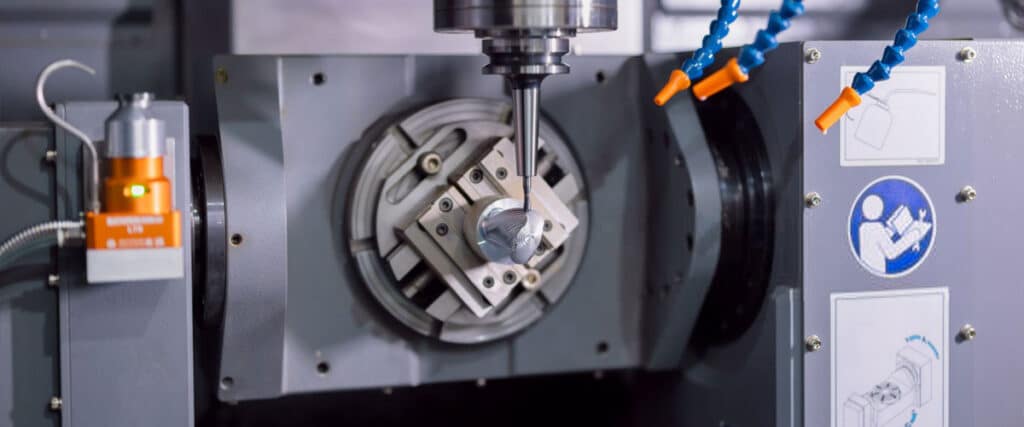

The Evolution of CNC Machining: From Manual Milling to Advanced Automation

The Evolution of CNC Machining has revolutionized manufacturing. The journey from manual milling to advanced automation reflects significant technological advancements and changes in manufacturing practices.

The Early Days: Manual Milling

In the early 20th century, milling machines were manually operated. Skilled machinists would use handwheels and dials to position cutting tools precisely, based on blueprints and physical measurements. This process was labor-intensive and required a high level of expertise. Each part produced was a testament to the machinist’s skill, but consistency and precision were challenging to maintain across large production runs.

The Advent of Numerical Control

The development of numerical control (NC) in the 1940s and 1950s marked the first major leap in machining technology. NC machines used punched tape and later magnetic storage to control machine movements. This innovation allowed for greater precision and repeatability, reducing the dependency on manual labor and human error.

The Rise of CNC

The 1970s saw the introduction of Computer Numerical Control (CNC) machines, which integrated computer technology with machining. CNC machines used computer programming to control all aspects of the machining process. This allowed for more complex and precise operations, higher speeds, and greater flexibility. Operators could now program machines to produce parts with intricate geometries and tight tolerances.

Advancements in CNC Technology

Over the past few decades, CNC technology has continued to evolve. Modern CNC machines are equipped with advanced features such as multi-axis machining, automated tool changers, and real-time monitoring systems. These advancements have significantly increased productivity, reduced waste, and improved the quality of finished products.

The Future of CNC Machining

The future of CNC machining is poised to see further innovations with the integration of artificial intelligence (AI), machine learning, and the Internet of Things (IoT). These technologies will enable smarter, more adaptive manufacturing processes. AI can optimize machining parameters in real-time, while IoT can provide valuable data for predictive maintenance and process improvements.

In summary, the evolution of CNC machining from manual milling to advanced automation has transformed manufacturing, making it more efficient, precise, and adaptable. As technology continues to advance, CNC machining will remain at the forefront of modern manufacturing, driving innovation and efficiency.
