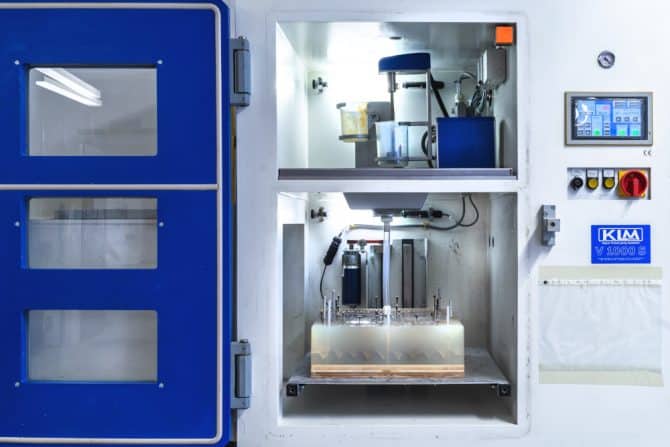

What is Vacuum Casting?
Vacuum casting is a manufacturing process used to produce high-quality, low-volume prototypes and parts. It involves creating molds and using vacuum pressure to fill these molds with casting material, typically polyurethane resins. This process is especially valuable for replicating the fine details and precise geometries of master models.
The Vacuum Casting Process
1.Master Model Creation:
- A master model is created using 3D printing, CNC machining, or another suitable method. This model serves as the reference for the silicone mold.
2.Mold Making:
- The master model is encapsulated in liquid silicone rubber to create a mold. Once the silicone cures, it forms a flexible, durable mold that accurately captures the details of the master model.
3.Casting Preparation:
- The silicone mold is cut open and the master model is removed. The mold is then placed in a vacuum chamber to remove any trapped air bubbles.
4.Material Injection:
- Liquid polyurethane or other casting material is mixed and degassed to remove air bubbles. The material is then poured into the silicone mold under vacuum conditions, ensuring complete filling without air entrapment.
5.Curing and Demolding:
- The filled mold is left to cure, typically in an oven, until the casting material solidifies. Once cured, the mold is opened, and the finished part is removed.

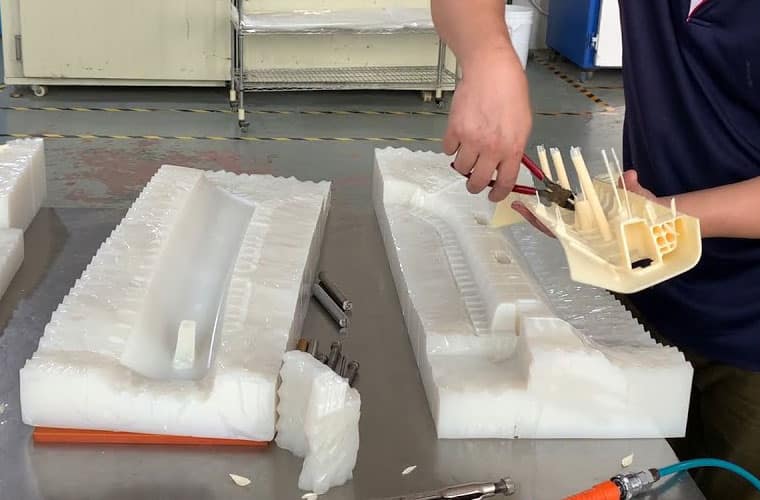

Advantages of Vacuum Casting
High Quality: Produces parts with fine details and smooth surfaces, closely replicating the master model.
Material Versatility: Compatible with various materials, including different types of polyurethanes, enabling a range of properties from flexible to rigid.
Cost-Effective for Low Volumes: Ideal for producing small batches of parts, reducing the need for expensive tooling.
Quick Turnaround: Faster production times compared to traditional manufacturing methods, making it suitable for rapid prototyping and short-run production.
Turn Concepts Into Reality
All information and uploads are secure and confidential.
Why Choose Customachining Vacuum Casting?
CUSTOMACHINING

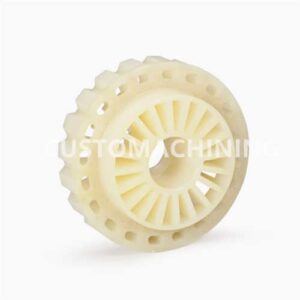

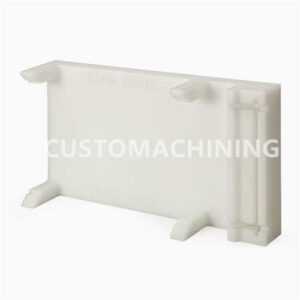

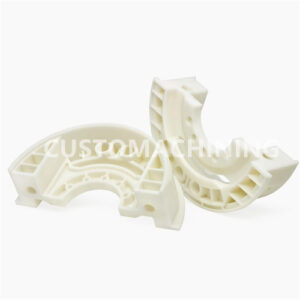

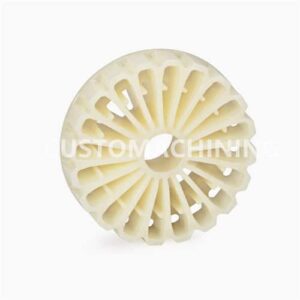

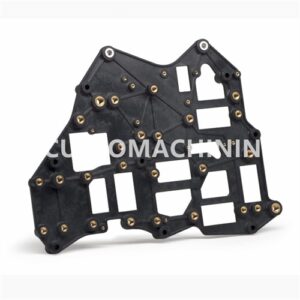

The Vacuum Casting Products
Request a Quote
If you already have the drawings, please send email to [email protected] directly for an instant quote.
Work with Customachining
Get a CNC Machining Solution with Easy
Let’s Start Our Cooperation with the 3 steps to start now!
1. Tell Us What You Need
Send us your request with details and share your idea.
2. Get Solution and Quote
We will work on the best solution base on your request and send you a specific quote within 24 hours.
3. Support at All Times
Whether it is before or after the sale, we are always here to support you.
Vacuum Casting FAQs
1. What materials can be used in vacuum casting?
Vacuum casting commonly uses polyurethane resins, which can be formulated to mimic various materials such as rubber, ABS, or polypropylene. Additionally, some silicone and wax materials are used for specific applications.
2. How long does the vacuum casting process take?
The vacuum casting process typically takes a few days to complete. This includes creating the master model, curing the silicone mold, casting the parts, and final curing. Turnaround time can vary depending on the complexity and number of parts required.
3. What is the typical lifespan of a vacuum casting mold?
A silicone mold used in vacuum casting can generally produce 20 to 25 parts before it begins to degrade. The exact number of castings depends on factors such as the complexity of the parts and the material used for casting.
4. What level of detail and accuracy can vacuum casting achieve?
Vacuum casting can achieve high levels of detail and accuracy, with tolerances typically within ±0.1 mm. This makes it ideal for creating prototypes and parts that require precise dimensions and fine surface details.
5. Is vacuum casting suitable for producing end-use parts?
Yes, vacuum casting is suitable for producing both prototypes and end-use parts, especially for small production runs. It is commonly used in applications where high-quality, functional parts are needed quickly and cost-effectively.
6. How does vacuum casting compare to injection molding?
Vacuum casting is more cost-effective and faster for low-volume production runs and prototyping compared to injection molding. However, injection molding is more suitable for high-volume production due to its lower per-part cost and faster cycle times.
